Description

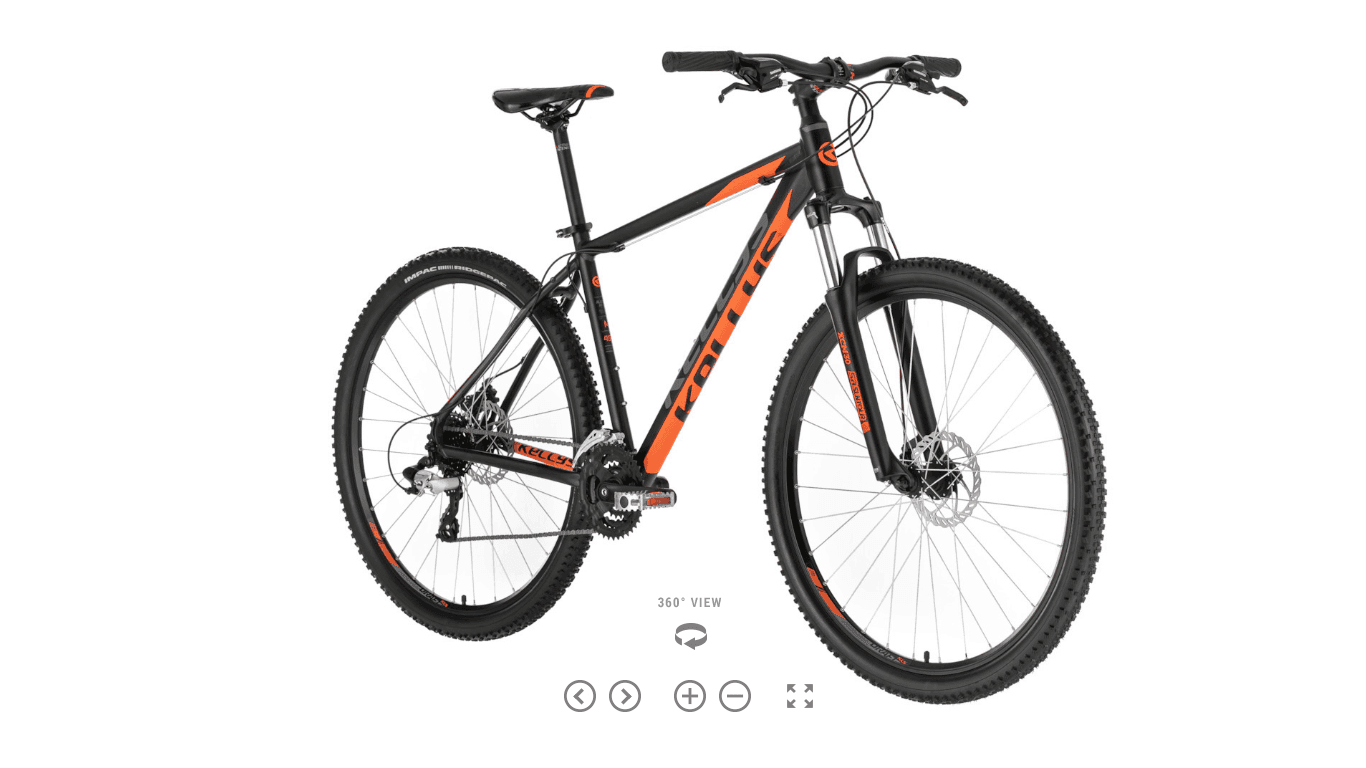

KELLYS 2020 Madman 30 Black 24s 29”

https://www.kellysbike.com/en/mtb-xc-c714/madman-30-black-29-p64374

SPECIFICATIONS
FRAME: KELLYS Alutec RRC 29 – Race Ready Concept
FRAME SIZE: M / L
FORK
SR SUNTOUR XCM HLO (29), 100mm, coil / Speed Lockout
HEAD PARTS: semi-integrated
B.B.PARTS: cartridge (122mm)
CRANKSET: SHIMANO TY301 (42x34x24T) – length 175mm (M – L)
SHIFTERS: SHIMANO ST-EF510-8 EZ-fire Plus
F/DERAILLEUR: SHIMANO TY700 (31.8mm)
R/DERAILLEUR: SHIMANO TX800 (direct mount)
SPEED: 24
CASSETTE SPROCKET: SHIMANO CS-HG200-8 (12-32T)
CHAIN: KMC Z8 (110 links)
BRAKES: C-STAR CX7 Mechanical Disc
BRAKE ROTORS: 160mm front / 160mm rear
BRAKE LEVERS: SHIMANO ST-EF510-8 EZ-fire Plus
HUBS: KLS Firework Disc (32 holes)
RIMS: KLS Draft Disc 622×19 (32 holes)
SPOKES: steel
TIRES: IMPAC Ridgepac 54-622 (29×2.10)
STEM: KLS Active – diam 28.6mm / bar bore 31.8mm / 8° / length 75mm (M), 90mm (L)
HANDLEBAR: KLS Active RiseBar – diam 31.8mm / rise 18mm / width 680mm (M – L)
GRIPS: KLS Advancer
SEAT POST: KLS Active – diam 27.2mm / length 400mm (M – L)
SADDLE: KLS Falcon
PEDALS: alloy
WEIGHT KG: 13.9
