KELLYS Gate 70 S Deore XT/SLX 22 spd 27.5″

FRAME:
Thru-axle equipped 3ple butted aluminium alloy frame with Race Ready Concept geometry for sportive mountain abilities with high pedaling efficiency, top-notch handling, and total control both in racing and training conditions.
FORK:
Air-sprung Rock Shox Sektorwith OneLoc Remote Lockout and thru-axle, an all-around XC fork with 100 mm travel and optimum stiffness-to-weight ratio provides all the grip and confidence every XC rider needs.
DRIVETRAIN:
2×11 Shimano Deore XT/SLX drivetrain ensures swift shifting and a wide gear range to fit every off-road condition.
BRAKES:
Powerful and precise Shimano hydraulic disc brake ensures easy speed control and confidence in every off-road condition.

FRAME KELLYS Dynamic RRC 27.5, tapered HT, internal routing, 12x148mm Boost thru-axle

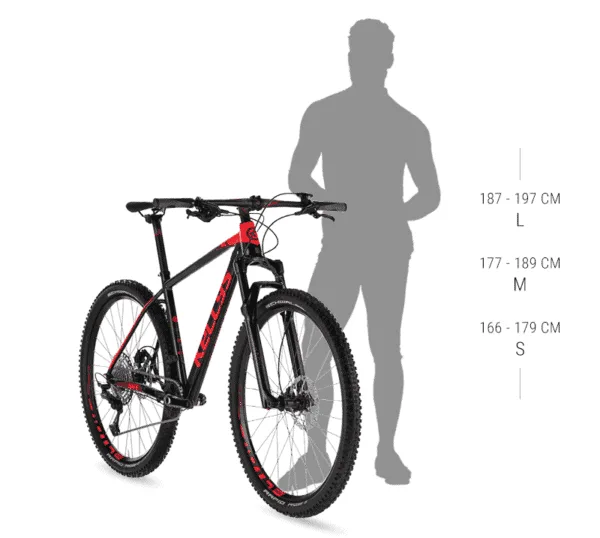

FRAME SIZE S / M
FORK ROCK SHOX Sektor RL (27.5) Boost, 100mm, DebonAir / OneLoc Remote Lockout / Maxle Stealth 15mm thru axle
HEAD PARTS FSA 1.5 integrated
B.B.PARTS SHIMANO MT500 Press-Fit
CRANKSET SHIMANO SLX M7000-11-2 Holowtech II (36×26) – length 170mm (S), 175mm (M)
SHIFTERS SHIMANO SLX SL-M7000 Rapidfire Plus
F/DERAILLEUR SHIMANO SLX M7020-D (direct mount)
R/DERAILLEUR SHIMANO Deore XT M8000 (direct mount)
SPEED 22
CASSETTE SPROCKET SHIMANO CS-M7000-11 (11-42)
CHAIN KMC X11 (112 links)
BRAKES SHIMANO MT400 Hydraulic Disc
BRAKE ROTORS SHIMANO 160mm front / 160mm rear
BRAKE LEVERS SHIMANO BL-MT400
HUBS NOVATEC Disc (15x100mm / 12x142mm / 32 holes)
THRU AXLE ROCK SHOX Maxle Lite – 15x100mm front / NOVATEC 12x142mm rear
RIMS KLS MadMax Disc 584×18 (32 holes)
TIRES SCHWALBE Rapid Rob 57-584 (27.5×2.25)
STEM KLS Advanced – diam 28.6mm / bar bore 31.8mm / 7° / length 80mm (S-M)
HANDLEBAR KLS Advanced FlatBar – diam 31.8mm / width 680mm (S), 700mm (M)
GRIPS KLS Crypton
SEAT POST KLS Active – diam 30.9mm / length 300mm (S), 350mm (M)
SADDLE KLS Avenger
PEDALS KLS Master – alloy
